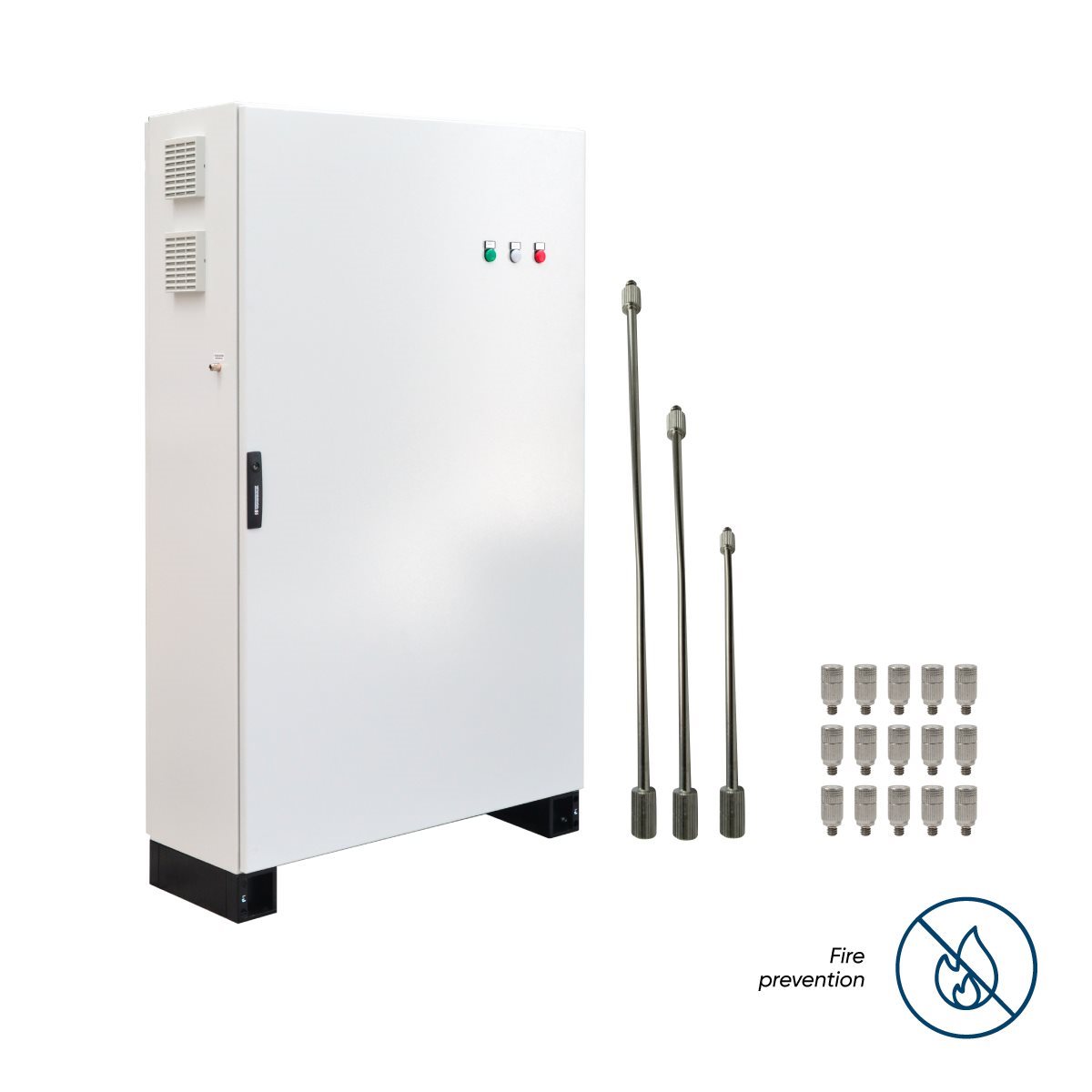

FOG ANTINCENDIO

Kitchen extract duct degreasing & odor treatment system

Alternative to expensive and cumbersome technologies

Fog Antincendio is a kitchen extract duct degreasing & odor treatment system.It was developed to provide a cost effective, safe and environmentally friendly alternative to expensive and cumbersome technologies such as UV or misting hoods.Proprietary technology: allows Fog Antincendio to be installed or retro-fitted to virtually any existing kitchen extract duct.

By following the external run of the kitchen extract duct with flexible piping, misting nozzles are placed intermittently inside the duct, from above the hood all the way to the duct extract point.These nozzles produce a fine degreasing mist, which disperses within the flow of air inside the duct. This degreasing mist follows the same path as grease particles, therefore reaching and eradicating all areas of grease deposits inside the duct. Fog Antincendio is a fine mist system that requires no duct drainage.

Fog Antincendio systems are available in 3 options: single circuit, dual circuit and multi-circuit. Dual and multi-circuits FogAntincendio systems were designed to treat multiple kitchenextract ducts using only one machine. From a value engineeringstand point, dual and multi-circuit Fog Antincendio systemsare a highly cost effective option for commercial propertiesrequiring kitchen extract duct degreasing and odor control forseveral F&B operations, such as in hotels, hospitals and malls.
highlights
antincendio_3-245x245
antincendio_2-245x245
Technical data
CODE Model No. of nozzles min - max* Pressure Flow rate Power absorption (230V-50Hz)
ZX.FAI-1 FOG ANTINCENDIO-1 (per un condotto) <22° 56-70bar 1l/min 1,1Kw
ZX.FAI-2 FOG ANTINCENDIO-2 (per un condotto) 30-82° 56-70bar 3,8l/min 1,5Kw
ZX.FAI-4 FOG ANTINCENDIO-4(per un condotto) 20-120° 56-70bar 5,6l/min 2,2Kw
* The max number of nozzles has been calculated by using a nozzle IT.204C with flow rate 020 (0,075l/min) at 70bar
Technical data
Fog Antincendio installation keeps kitchen extract ductsgrease-free 365 days a year:
- Eliminates the source of combustible fuel inside the ducts.
- Reduces extract duct cooking and stagnant grease odors.

Fog Antincendio is a more cost efficient alternativeto UV & Misting Hoods:
- Fog Antincendio permanently eliminates all grease in ducts.UV & misting hoods don’t.

Fog Antincendio is easy to install, requires no modification to hoods or extract fans:
- Can be pre-fit or retro-fit on existing projects, requiresNO duct drainage points and has NO impact on air balancing.
- Works well in conjunction with Ecology & ESPUnits to further reduce smoke and smell.

MEET degreasing products is 100% biodegradableand environmental:
- NO chemicals, NO hazardous products, NO UV radiation and NO Ozone

Cabinet dimensions WxLxH:
- 1600x800x500mm (single circuit system)
- 1800x1000x500mm (two circuit system)
- 1800x1000x500mm (four circuit system)
optionals / ZX.FAI-4
