FOG ADIABATICO

+ 30% Cooling capacity

High pressure adiabatic system for chillers

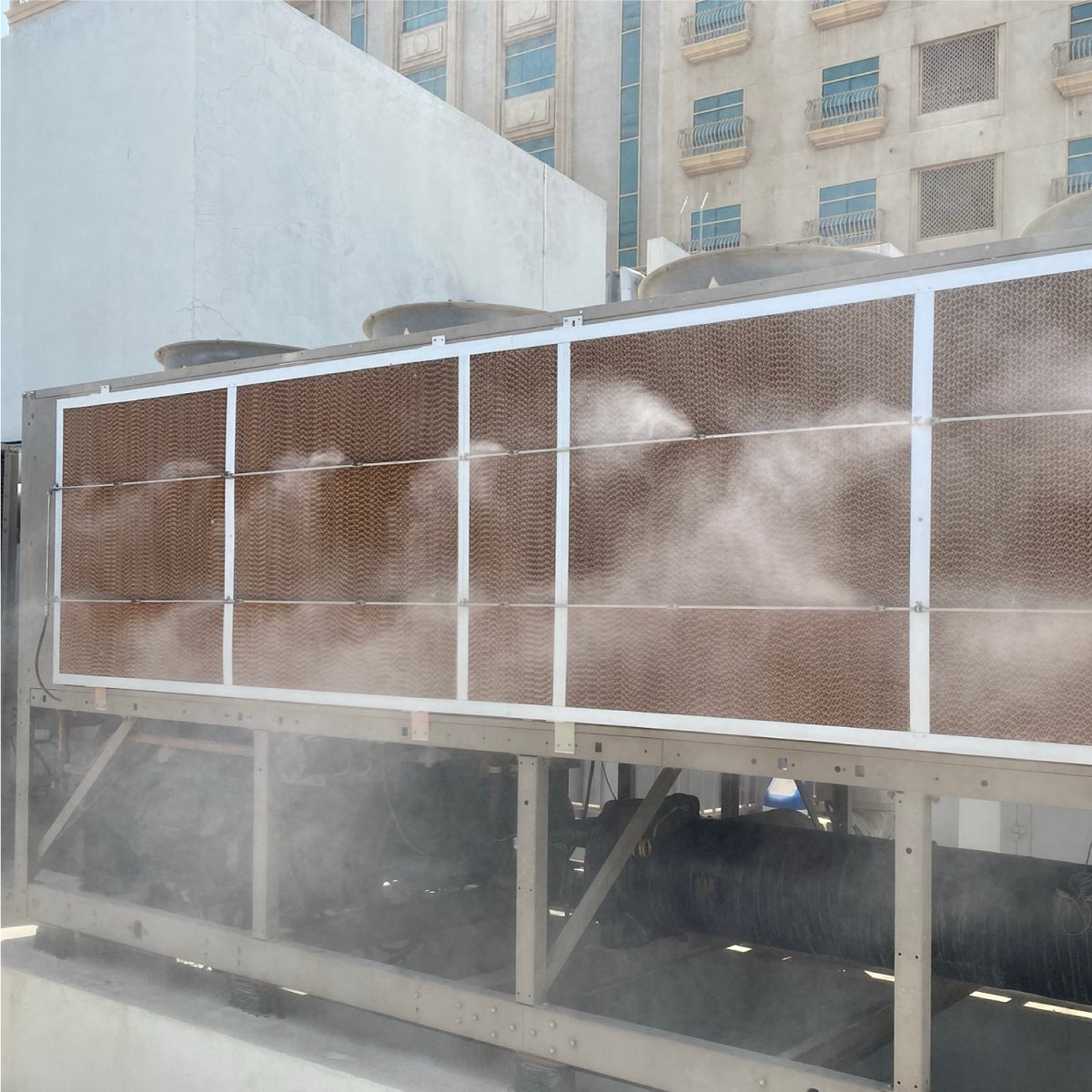

The Adiabatic system has been studied to increase the adiabatic heat exchange of the dry cooler, the nebulization of water in microdroplets reduces the temperature of the air adjacent to the chiller helping to increase the efficiency of the machinery.
highlights
adiabatico_2-245x245
Technical data
CODE Description Flow rate Power Dry Cooler Polyamide pipe Steel pipe Slip Slock Smart Tube cutter Quick fitting Line end cap
ZX.FAD-0401 FOG 70 4l/min 1,5KW(3x100V) 1 1 51 50 1 4 4
ZX.FAD-0802 FOG 70 8l/min 1,5KW(3x100V) 1 1 51 50 1 4 4
ZX.FAD-1103 FOG 70 11l/min 1,5KW(3x100V) 3 3 156 150 3 12 12
ZX.FAD-1504 FOG 70 15l/min 2,2KW(3x100V) 4 4 208 200 4 16 16
ZX.FAD-2105 FOG 70 21l/min 3KW(3x100V) 5 5 260 250 5 20 20
ZX.FAD-3308 FOG 70 33l/min 6,3KW(3x100V) 8 8 416 400 8 32 32
ZX.FAD-4210 FOG 70 42l/min 6,3KW(3x100V) 10 10 520 500 10 40 40
Technical data
• Increase cooling capacity up to 30%
• Energy consumption decrease,up to 30%
• Increase the efficiency of HVAC &reduce running cost
• Maintenance is minimized & extendthe life of the system
• Lowe investment cost
• Quick installation
optionals / ZX.FAD-4210
