Motor-pump unit

Technical data

CODE	Modello	Versione	Pressione	Portata	g/min	Potenza	Peso	Set manutenzione 500 ore	Set manutenzione 750 ore	Set manutenzione 1000 ore	Set manutenzione 1500 ore

ZX.1040	1450 110/11 F	By-pass	110bar	11l/min	1450	3,0 hp/2,2kW (1x230V-50Hz)	33,7kg	/	ZX.75IBG02	/	ZX.150IBG02

ZX.1040-TS	1450 110/11 F TS	Total Stop	110bar	11l/min	1450	3,0hp/2,2kW (1x230V-50Hz)	34,5kg	/	ZX.75IBG02	/	ZX.150IBG02

ZX.1042	1450 150/15 F	By-pass	150bar	15l/min	1450	5,5hp/4,0kW (3x400V-50Hz)	36,8kg	/	ZX.75IBG03	/	ZX.150IBG03

ZX.1042-TS	1450 150/15 F TS	Total Stop	150bar	15l/min	1450	5,5hp/4,0kW (3x400V-50Hz)	37,5kg	/	ZX.75IBG03	/	ZX.150IBG03

ZX.1043	1450 200/15 F	By Pass	200bar	15l/min	1450	7,5hp/5,5kW (3x400V-50Hz)	46,3kg	/	ZX.75IBG03	/	ZX.150IBG03

Technical data

Motor base made of chromed steel with anti-vibration feet
Professional pump 1450Rpm, crankshaft, brass head, 3 ceramic plungers. Complete with bolt unloader valve and glycerine-filled pressure gauge
Electric motor 1450Rpm 50Hz, IPP55 electric box with ON/OFF circuit breaker switch
Electric cable 5m

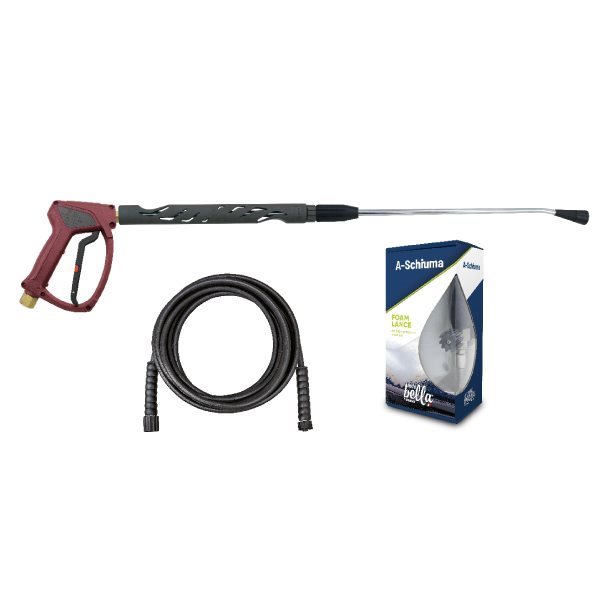

optionals / ZX.1040
