RED 60 spray gun, outlet female swivel ball type KW

products

ZX.1838

Service kit for RED 60 spray gun

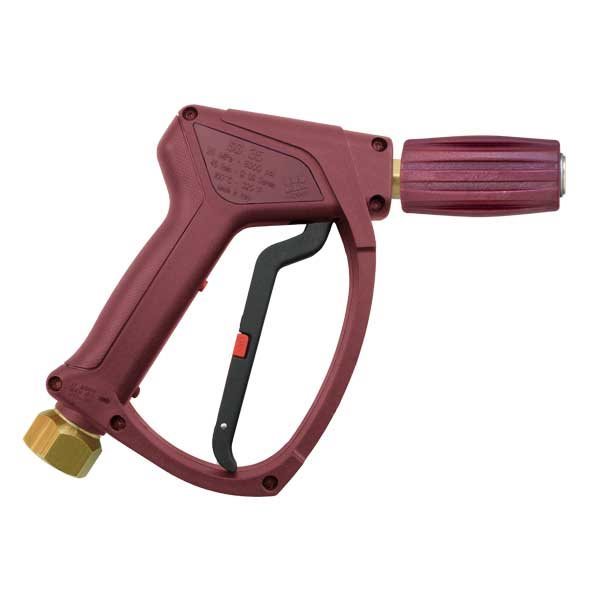

ZX.1845

RED 60 spray gun, outlet female swivel ball type KW
Features suitable for continuous use: 200bar, 30l/min, 90°C

Technical data

Max temperature: 150°C
Max flow rate: 45l/min
Max pressure: 220bar
Outlet: F ball KW type
Intlet: G3/8" F

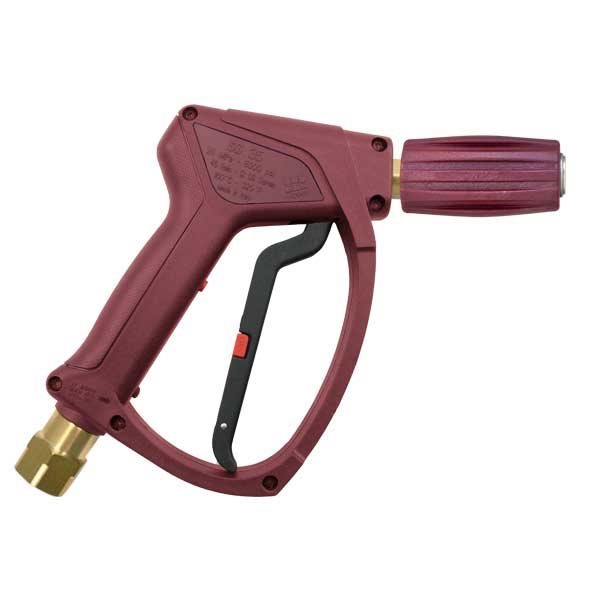

ZX.1846

RED 60 spray gun, outlet female swivel ball type KW
Features suitable for continuous use: 200bar, 30l/min, 90°C

Technical data

Max temperature: 150°C
Max flow rate: 45l/min
Max pressure: 220bar
Outlet : F ball KW type
Inlet: G3/8" F swivel

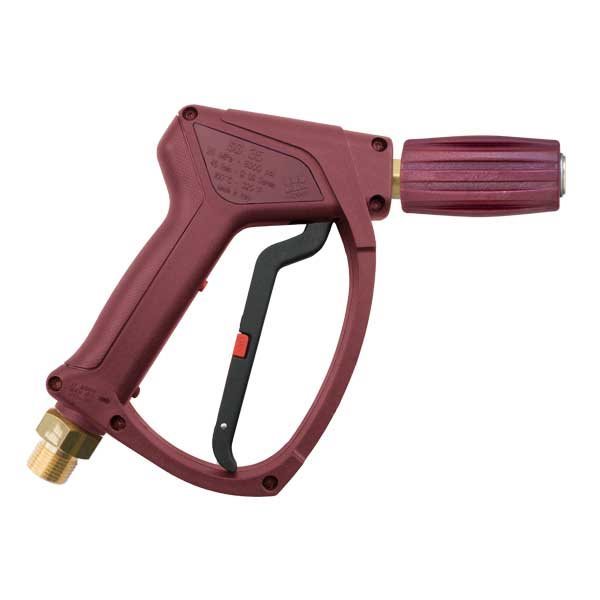

ZX.1847

RED 60 spray gun, outlet female swivel ball type KW.
Features suitable for continuous use: 200bar, 30l/min, 90°C

Technical data

Max temperature: 150°C
Max flow rate: 45l/min
Max pressure: 220bar
Outlet: F ball KW type
Inlet: G3/8" M

ZX.1848

RED 60 spray gun, outlet female swivel ball type KW
Features suitable for continuous use: 200bar, 30l/min, 90°C

Technical data

Max temperature: 150°C
Max flow rate: 45l/min
Max pressure: 220bar
Outlet: F ball KW type
Inlet: M22x1,5 M

The winning solution to manufacture and repair all kinds of pressure washers
